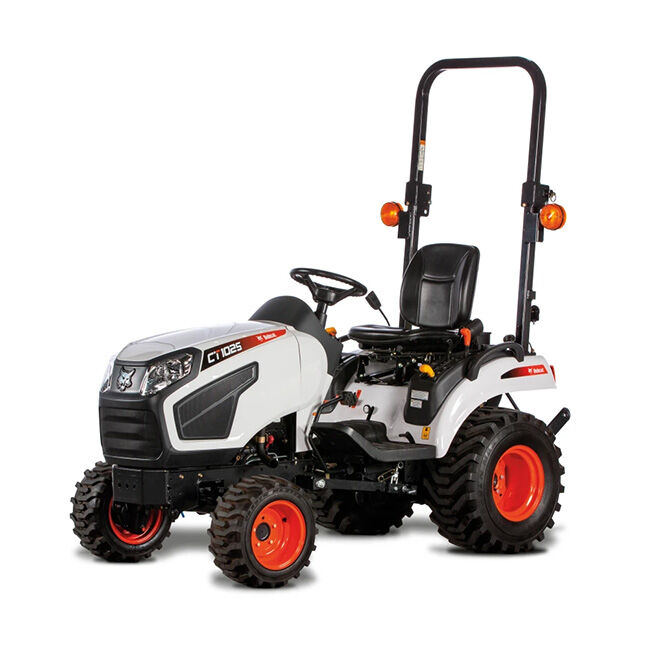

Bobcat CT1025 Sub-Compact Tractor
This 25-hp sub-compact tractor offers four-wheel drive and clutch-free 2-range hydrostatic transmission.
- Compact 46-inch width
- Limited Category 1 three-point hitch for using implements
- Rear and mid-PTO
- Get added horsepower for operating a variety of attachments and implements – without sacrificing the compact size and maneuverability to mow and complete light-duty projects on your property.
- Mid-PTO provides the option of combining two tools on one machine – one in the back and either one in the front or a mid-mount mower.
- Do more with one machine. The rear PTO and Limited Category 1 three-point hitch allow the versatility to use both drag-behind and PTO-powered implements.
- Engage four-wheel drive for hard-working traction when your work demands it.
B54914374
| CT1021 Key Specifications | |
| Horsepower | 24.5 hp |
| Lift Capacity at 24" behind Lift Point | 700 lb |
| PTO HP | 18.8 hp |
| Transmission Type | Infinite, 2 Range Hydrostatic |
| Width | 45.7 in |
| Turning Radius | 8' 3" |
| Wheelbase | 4' 7" |
| Engine | |
| Emissions Tier (EPA) | Tier 4 |
| Horsepower | 24.5 hp |
| Displacement | 61 in3 |
| Number of Cylinders | 3 |
| Gross HP | 24.5 hp |
| Engine Model | 3C100LFH-U1 |
| Performance | |
| Operating Weight | 1,521 lb |
| Travel Speed | 11 mph |
| Travel Speed - Reverse | 7.5 mph |
| 3-Point Hitch | Category 1 |
| 3-Point Lift Control Type | Hydraulic Position Control System |
| Lift Capacity at 24" behind Lift Point | 700 lb |
| Rear PTO System | Independent |
| Rear PTO - RPM | 540 |
| PTO HP | 18.8 hp |
| Mid PTO - RPM | 2200 |
| Capacities | |
| Fuel Tank | 6.7 gal |
| Hydraulic System | |
| Implement Hydraulic Flow | 4.6 gal/min |
| Total Hydraulic Flow | 6.4 gal/min |
| Steering Hydraulic Flow | 1.8 gal/min |
| Drive System | |
| Brake Type | Wet Multi Disc |
| Transmission Type | Infinite, 2 Range Hydrostatic |
| Dimensions | |
| Length | 99.3 in |
| Width | 45.7 in |
| Height | 87.6 in |
| Ground Clearance | 6.3 in |
| Turning Radius | 8' 3" |
| Wheelbase | 4' 7" |
| Front Tire Size | Front Industrial (AG, Turf) 18X8.5-10 (18X8.5-10,18X8.5-10 ) |
| Rear Tire Size | Rear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12 ) |
| Loader Attachment | |
| Loader Lift Height | 6' 0" |
| Lift Capacity at Bucket Pivot | 608 lb |
| Bucket Width | 4' 0" |
