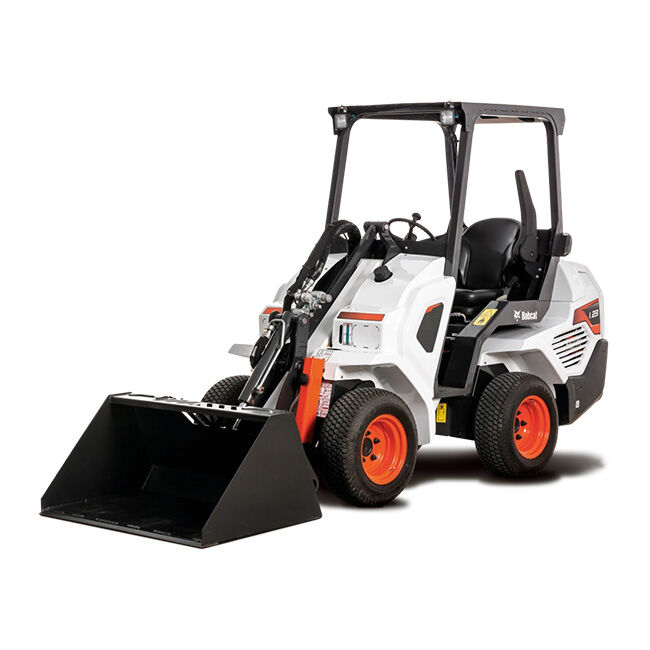

Bobcat L23 Small Articulated Loader
The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.
- The Bobcat® L23 small articulated loader is small enough to fit in small lots, backyards and other tight jobsites
- A tight-turning articulation joint allows maneuverability in confined spaces
- It delivers an impressive lifting capability to maximize productivity
- Minimal ground disturbance
B4LC11400
| Key Specifications | |
| Horsepower | 24.8 hp |
| Rated Operating Capacity Straight (ISO) | 1,395 lb |
| Rated Operating Capacity Art. (ISO) | 1,159 lb |
| Operating Weight | 3,790 lb |
| Auxiliary Std. Flow | 12.1 gal/min |
| Width (Over Tires) | 43.3 in |
| Engine | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 24.8 hp |
| Turbocharged Engine | No |
| Performance | |
| Rated Operating Capacity Straight (ISO) | 1,395 lb |
| Rated Operating Capacity Art. (ISO) | 1,159 lb |
| ROC with Counterweight Option Straight | 1,815 lb |
| ROC with Counterweight Option Art. | 1,471 lb |
| Tipping Load Straight | 2,789 lb |
| Tipping Load Art. | 2,317 lb |
| Operating Weight | 3,790 lb |
| Travel Speed | 8.2 mph |
| Capacities | |
| Fuel Tank | 9.6 gal |
| Hydraulic System | |
| System Relief at Quick Couplers | 2,900 psi |
| Auxiliary Std. Flow | 12.1 gal/min |
| Drive System | |
| Drive Type | Hydrostatic pump driving 4 independent wheel motors |
| Dimensions | |
| Length | 122.4 in |
| Length without Attachment | 93.2 in |
| Length with Standard Bucket | 122.4 in |
| Width (Over Tires) | 43.2 in |
| Width (With Bucket) | 44 in |
| Height with Operator Cab | 78.1 in |
| Height to Bucket Hinge Pin Ext. | 85.4 in |
| Height to Bucket Hinge Pin Ret. | 85.4 in |
| Max Reach | 16.8 in |
| Turning Radius (Inside) | 77.2 in |
| Turning Radius (Outside) | 100.9 in |
| Wheelbase | 47.2 in |
| Articulation Angle | 43° |
| Dump Angle at Maximum Height | 40° |
| Ground Clearance | 5.5 in |
| Rollback Angle | 32° |
| Tire Size | 23X8.5-12 |
| Wheel Tread | 34.4 in |
| Features | |
| Air Conditioning | N/A |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Cab Heater | Optional |
| Rear Window | Optional |
| Lift-Arm Support | Standard |
| Two Speed Travel | N/A |
| Deluxe Instrumentation | N/A |
| Hydraulic Bucket Positioning | Standard |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Horn | Standard |
| Front and Rear Work Lights | Standard |
| Rotating Flashing Beacon | Optional |
| Turn Signals | Optional |
| Tires-Ply Rating | 10 |
| Heavy-Duty Float Tires | Optional |
| Cup Holder | Standard |
| Grab Handles | N/A |
