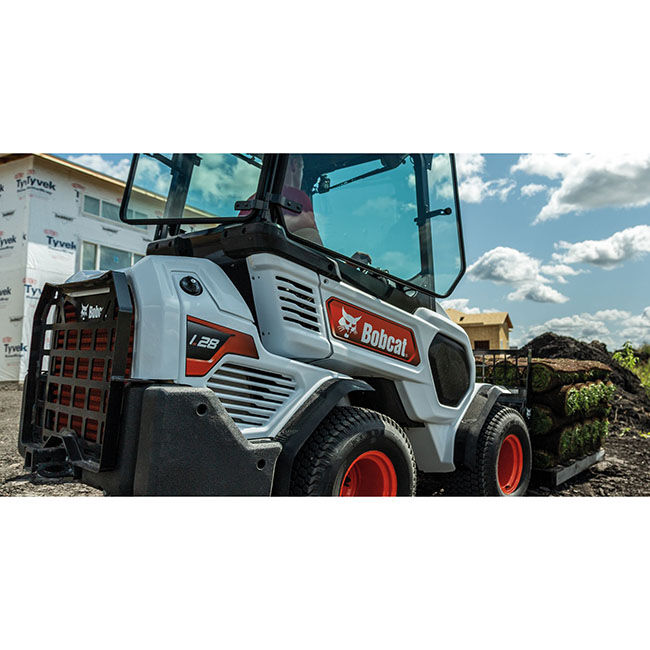

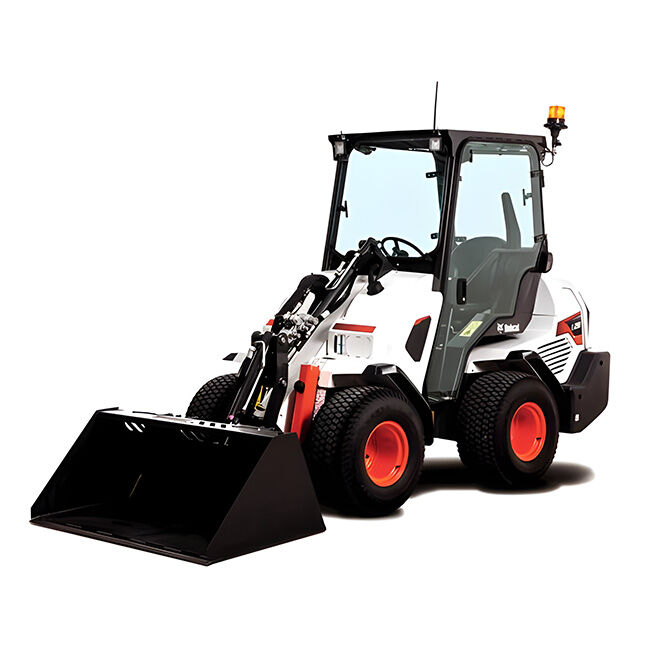

Bobcat L28 Small Articulated Loader
The L28 Bobcat® small articulated loader delivers big performance and heavy lifting in a small package.
- Easily works inside fenced-in landscapes, pens, backyards, and more
- Impressive lifting capacity and telescoping lift arm
- Tight-turning articulation joint
B4LD14336
| Engine | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 24.8 hp |
| Turbocharged Engine | â–¡ |
| Engine Model | D1305-E4B-BC-1 |
| Engine Make | Kubota |
| Cooling System | 22.26 l |
| Gross HP | 24.8 hp |
| Net HP | 23.7 hp |
| Number of Cylinders | 3 |
| Displacement | 77 in³ |
| Maximum Governed RPM | 2,720 rpm |
| Torque (SAE NET) | 57.5 ft·lbf |
| Torque RPM | 1,700 rpm |
| Starter Horsepower | 2.7 hp |
| Performance | |
| Rated Operating Capacity Straight (ISO) | 1,534 lb |
| Rated Operating Capacity Art. (ISO) | 1,222 lb |
| ROC with Counterweight Option Straight | 1952 lb |
| ROC with Counterweight Option Art. | 1475 lb |
| Tipping Load Straight | 3068 lb |
| Tipping Load Art. | 2444 lb |
| Operating Weight | 4195 lb |
| Travel Speed | 8.3 mph |
| Travel Speed - High | 9.8 mph |
| Bucket Breakout Force | 3,115 lbf |
| Lift Breakout Force (ISO) | 2,515 lbf |
| Capacities | |
| Fuel Tank | 9.6 gal |
| Engine Oil with Filter | 4 qt_liq_us |
| Hydraulic Reservoir | 2.7 gal |
| Hyd System Capacity | 5.5 gal |
| Hydraulic System | |
| System Relief @ Quick Couplers | 2,900 psi |
| Auxiliary Std Flow | 12.1 gal/min |
| Pump Capacity | 12.1 gal/min |
| Raise Lift Arm | 2.6 s |
| Lower Lift Arm | 2.2 s |
| Bucket Dump | 1.8 s |
| Bucket Rollback | 1.4 s |
| Telescope Extend Time | 5.5 s |
| Telescope Retract Time | 3.4 s |
| Drive System | |
| Drive Type | Hydrostatic drive with 4 individual drive motors |
| Wheel Bolts - Quantity | 5 |
| Wheel Bolts - Size | 14mm |
| General | |
| Contract Codes | Articulated Loaders |
| First Year of Production | 2020 |
| Controls | |
| Vehicle Steering | Steering Wheel |
| Auxiliary Hydraulics Type | Finger Tip Control |
| Dimension | |
| Length | 122.4 in |
| Length without Attachment | 93.2 in |
| Length with Standard Bucket | 122.4 in |
| Width (over tires) | 46.5 in |
| Width (with bucket) | 50 in |
| Height with Operator Cab | 78.1 in |
| Height to Bucket Hinge Pin Ext | 104.3 in |
| Height to Bucket Hinge Pin Ret | 85.4 in |
| Max Reach | 30.9 in |
| Turning Radius Inside | 78.2 in |
| Turning Radius Outside | 100.9 in |
| Wheelbase | 47.2 in |
| Articulation Angle | 43° |
| Dump Angle @ Maximum Height | 40° |
| Ground Clearance | 5.5 in |
| Operating Height | 10.19 ft |
| Max Dump Height | 7.01 ft |
| Angle of Departure | 23° |
| Rollback Angle | 32° |
| Tire Size | 23X10.5-12, 8 PLY |
| Wheel Tread | 36.4 in |
