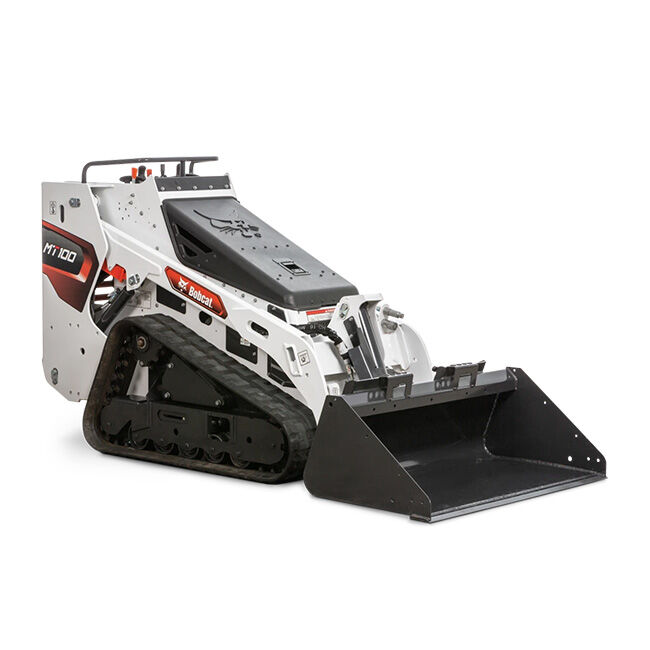

Bobcat MT100 Mini Track Loader
No need for wheelbarrows, shovels or other hand tools when you roll onto job sites with the Bobcat® MT100 mini track loader.
- The MT100 travels through gates, doorways and other narrow spaces with ease.
- The machine also delivers a big boost in power with a 1,000-pound rated operating capacity, powerful breakout force and impressive lift height.
- The optimized roller spacing on the MT100’s track system improves ride quality for enhanced operator comfort and confidence when working long days.
- Easy, tool-free access to maintenance areas and advanced safety features, including neutral start interlocks, are standard on the MT100 mini track loader, while sealed rollers eliminate the need for daily roller maintenance and decrease downtime.
- This loader also features high-flotation tracks that allow it to move across wet and muddy ground.
B52P40061, B52P40271, B52P41111, B52P41850
| Key Specifications | |
| Rated Operating Capacity (ISO) | 1,000 lb |
| Carry Position ROC with Standard Counterweight - Undercarriage Position | 1,300 lb |
| Operating Weight | 3,390 lb |
| Ground Pressure (Rubber) | 5.25 psi |
| Auxiliary Std. Flow | 12 gal/min |
| Width | 35.6 in |
| Height to Bucket Hinge Pin | 80.9 in |
| Engine | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Displacement | 55 in3 |
| Number of Cylinders | 3 |
| Horsepower | 24.8 hp |
| Performance | |
| Rated Operating Capacity (ISO) | 1,000 lb |
| Carry Position ROC with Standard Counterweight - Undercarriage Position | 1,300 lb |
| Tipping Load | 2,898 lb |
| Operating Weight | 3,390 lb |
| Ground Pressure (Rubber) | 5.25 psi |
| Travel Speed | 4.1 mph |
| Travel Speed - Reverse | 2.9 mph |
| Capacities | |
| Fuel Tank | 7 gal |
| Hydraulic System | |
| Pump Capacity | 12 gal/min |
| System Relief at Quick Couplers | 2,900 psi |
| Auxiliary Std. Flow | 12 gal/min |
| Dimensions | |
| Length | 106.2 in |
| Width | 35.6 in |
| Height | 54.6 in |
| Height to Bucket Hinge Pin | 80.9 in |
| Length of Track on Ground | 41.4 in |
| Reach at Maximum Height | 18.6 in |
| Features | |
| Lift-Arm Support | Standard |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Reverse Travel Stop Panel | N/A |
| Wide Track | Optional |
| Neutral Start Interlocks | Standard |
| Lift Arm Lockout with Manual Bypass | Standard |
| Tilt Lockout | Standard |
| Built-In Tie Down & Crane/Lift Locations | Standard |
| Ride-On Platform | Standard |
