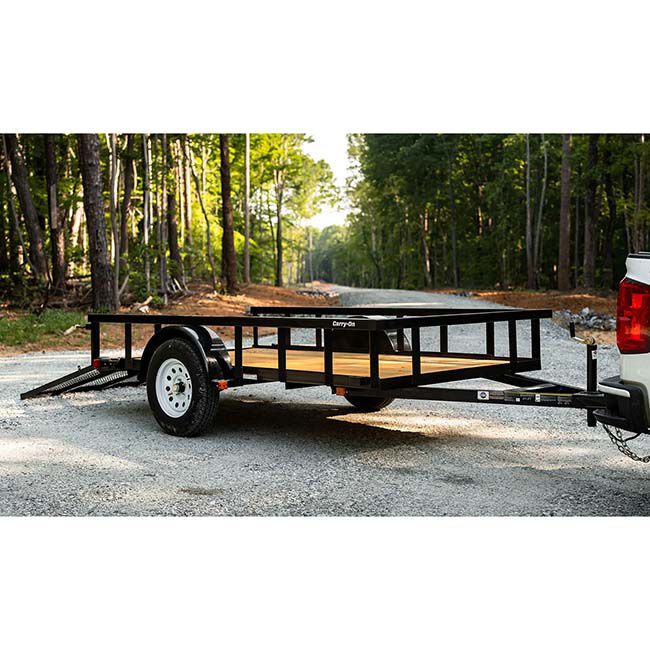

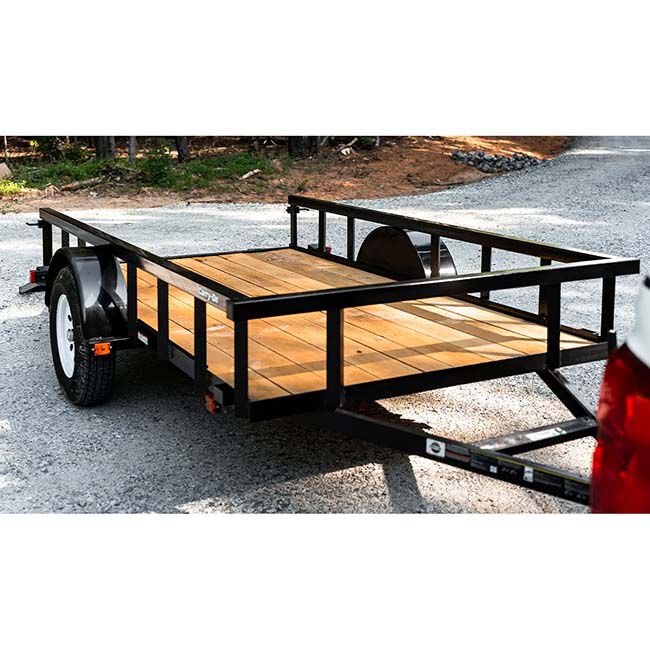

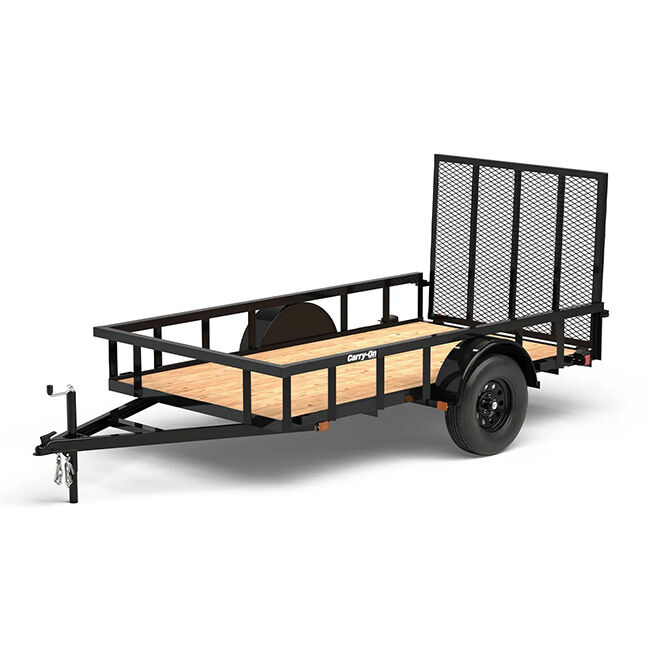

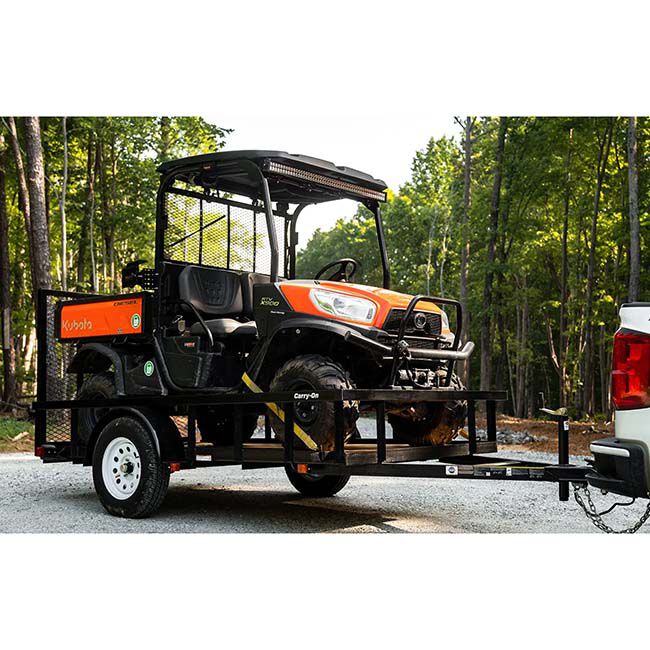

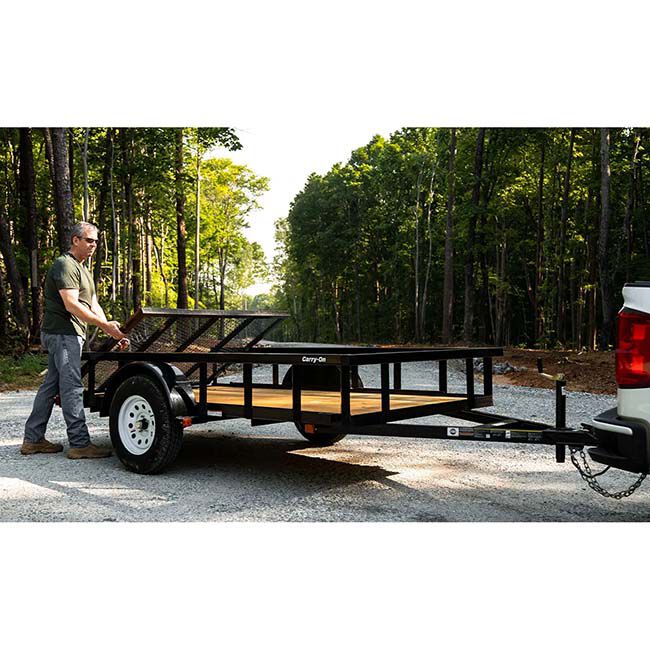

Carry-On Trailer UGWHDP Series Utility Trailer - 5.5' x 10'
With a rugged square steel tube top rail, this trailer doesn’t just look tough—it’s built to perform. Favored by commercial contractors, its bolder design provides added strength and rigidity, ensuring long-lasting durability. The A-frame tongue enhances stability and control, while the wood floor and fully welded steel frame make it a dependable choice for tackling any job on your list.
- Square Tube Top Rail: Adds strength and durability by resisting bending and twisting, ensuring lasting structural integrity and giving the trailer a rugged, reinforced look.
- 2x Treated Wood Floor: The wood floor offers reliable strength, distributing cargo weight securely for stable hauling. Treated for outdoor use, it’s built to handle the elements and can be replaced when needed.
- A-Frame Tongue: Increases the trailer stability and weight distribution, helping to reduce sway and improve handing for safer and more controlled towing. The design also provides additional space for mounting storage boxes.
- E-Z Lube Axle: Simplifies maintenance by allowing easy lubrication of both inner and outer bearings without disassembly, saving time and effort while also resulting in smoother operation.
Model Information
- Overall W x L: 80" x 174"
- Deck W x L: 66" x 120"
- Gate W x H: 64" x 49"
- Empty Weight: 914 lbs.
- Payload Capacity: 2,076 lbs.
- Coupler: 2" A-Frame (200T)
- Tongue Type: A-Frame 3" Steel Channel
- Length: Frame to Coupler:48"
- Level Tongue Height: 16-1/4"
- Safety Chains: Class II, 30" x 1/4" w/ Hooks (639T)
- Jack: 2,000 Lbs. Top-Wind (741)
- Flooring Material: 2x Treated Wood
- Deck Height from Ground: 18-3/4"
- Frame: 2" x 3" x 3/16" Steel Angle
- Uprights: 2" x 2" x 1/8" Steel Angle
- Upright Height: 14"
- Sides: Open
- Top Rail: 2-1/2" x 2-1/2" Steel Tube
- Cargo Hold: 4 Stake Pockets
- Fenders: 9" x 32" Steel Round w/ Back (9320T)
- Tires: 15" ST205/75D15 (205X15BLACK)
- Wheels: Black Mod
- Axle Type: Single 3,500 Lbs. E-Z Lube, 77"/64" (3K7764EZ)
- GVWR: 2,990 Lbs.
- Leaf Springs: 3-Leaf Eye-to-Eye (504T)
- U-Bolt: 1/2" Round (514T)
- Tie Plate: Medium 4" x 5-1/2" (513T)
- Hub Kit: 5 Lugs on 4-1/2" Pattern, 1,750 Lbs. (545T)
- Dust Cap: E-Z Lube (851T)
- Spindle: 1-3/8", Max 1,750 Lbs. Capacity (350T)
- Bearing: 1-3/8" Inner, 1-1/16" Outer Bearing Kit (502T)
- Grease Seal: 1.719" (496T)
- Gate Style: Fixed Ramp Gate
- Rear Latch: Spring Latch (847T)
- Plug Type: 4-Way Flat
- Tail Lights: 80"+ Roadside (815T), 80"+ Curbside (816T)
- License Plate Illumination: Incorporated with Roadside Tail Light
- Marker Lights: LED Amber Penny Light (881T)
- Clearance Lights: LED Amber Penny Light (881T)
- ID Lights: Red 3-Light ID Bar (838T)
