RAM 3,500lbs Electric-Powered A-Frame 12-Volt Jack

Item No. 7950369TT
3.4 out of 5 Customer Rating
in-store pickup only

RAM 3,500lbs Electric-Powered A-Frame 12-Volt Jack

Item No. 7950369TT
3.4 out of 5 Customer Rating

This item is available for in-store pick up only. Please email us or call us for more information.

in-store pickup only
Availability:
  • In Stock
*Additional Shipping Charges Apply
$132.00

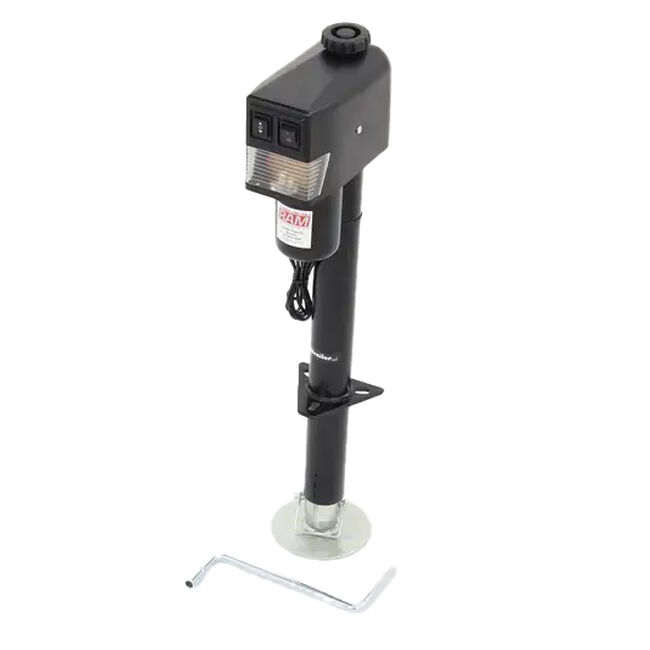

The RAM 3,500lbs Electric-Powered A-Frame 12-Volt Jack is an electric jack that lets you raise and lower your A-frame trailer. The trailer jack has a retracted height of 9", an extended height of 28-1/2", and 19-1/2" of travel, as well as a drop leg that allows for increased lift and saves time when raising or lowering. The pin and clip holds the leg at the desired location.

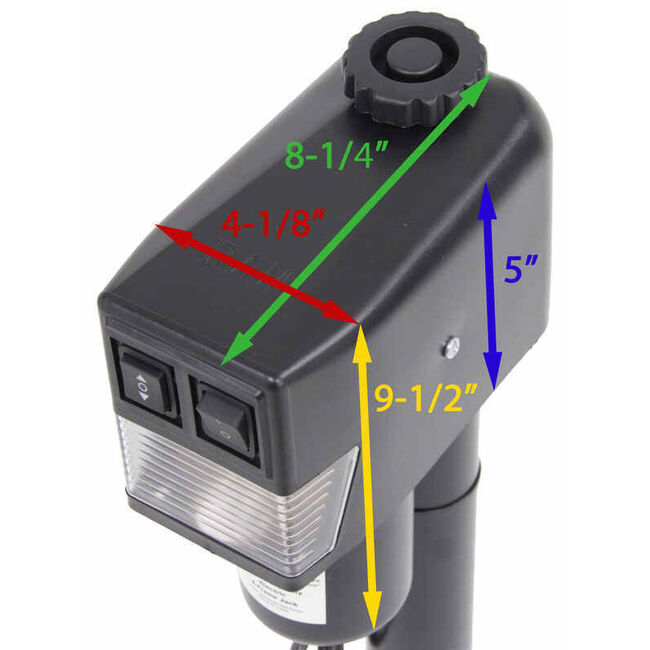

Two Toggle switches on the front of the housing let you operate the jack, including an On/off switch controls light and an Extend/retract switch, which controls up and down movement. The LED light illuminates at a downward angle to help you focus on your coupler.

Made from a black powder-coated outer tube and a zinc-finished inner tube and footplate to resist corrosion, the jack has a simple bolt-on installation. Wires to 12-volt power source (12-Gauge wires). A serrated washer is included for ground connection.

Includes a manual override handle.



Specifications

  • Bracket height:
    • Retracted: 9"
    • Extended: 28-1/2"
  • Total lift: 25-1/8"
    • Screw travel: 19-1/2"
    • Drop leg travel: 5-5/8"
  • Clearance:

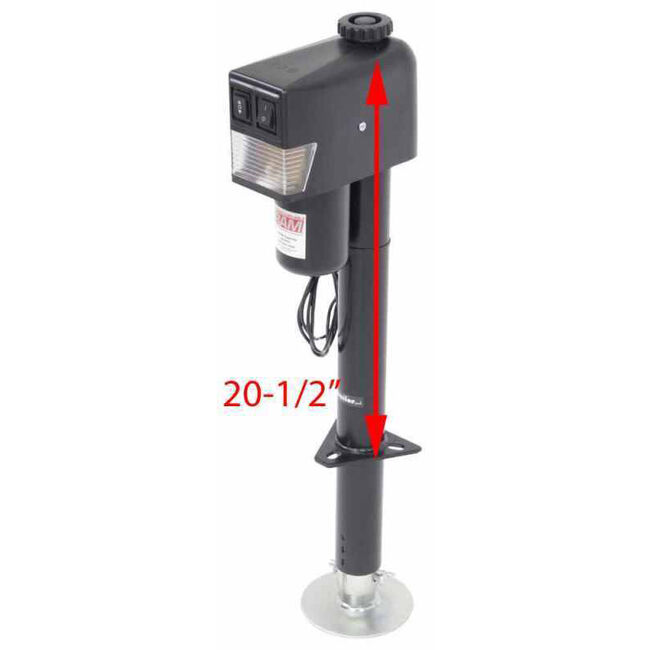

    • 20-1/2" From bottom of bracket to top of jack
  • Outer tube diameter: 2-1/4"
  • Inner tube diameter: 2"
  • Hole spacing on drop leg: 1-7/8"
  • Footplate diameter: 5-1/2"
  • Lift capacity: 3,500 lbs
  • 1-Year warranty
